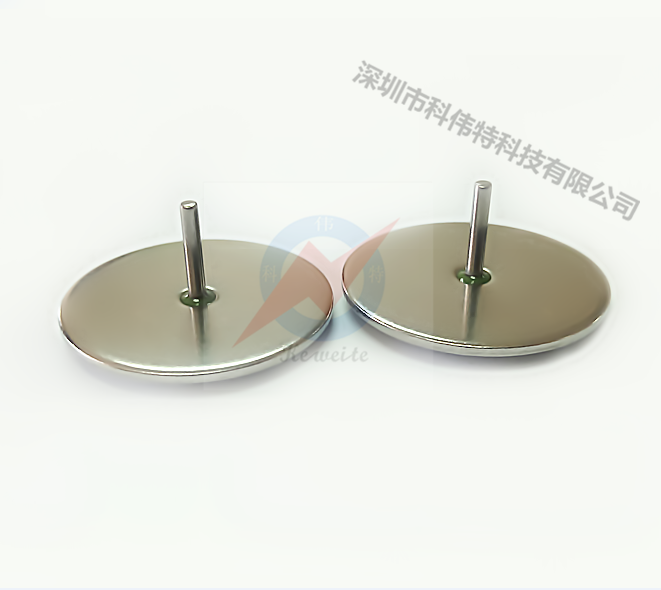

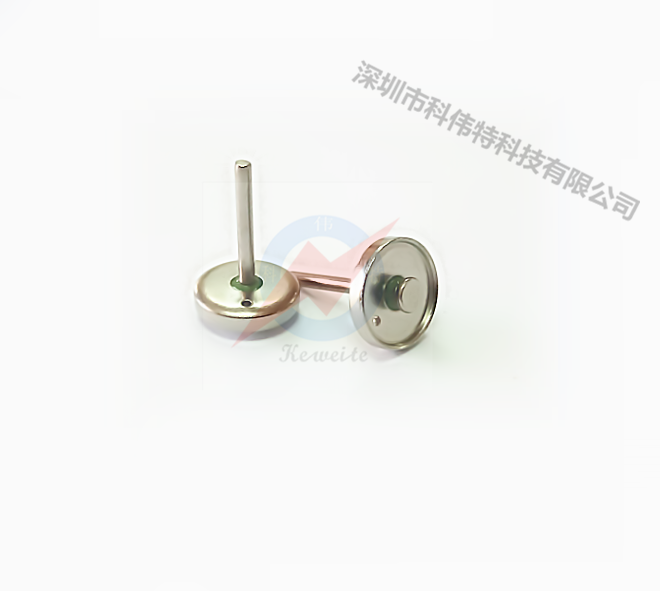

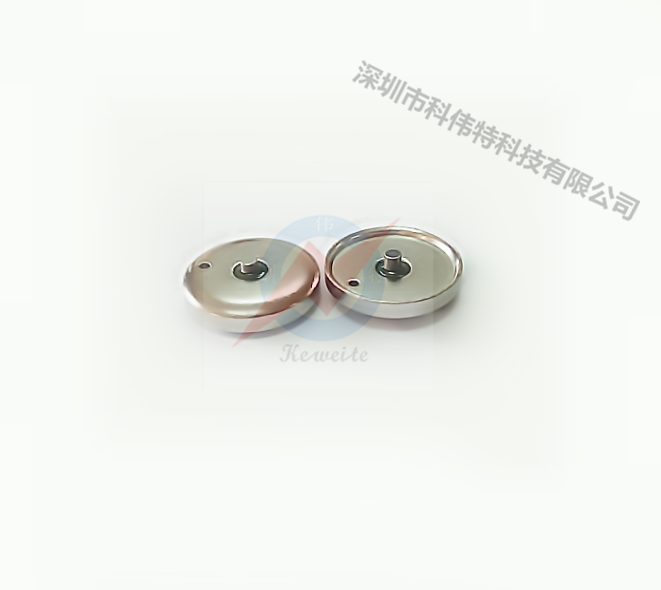

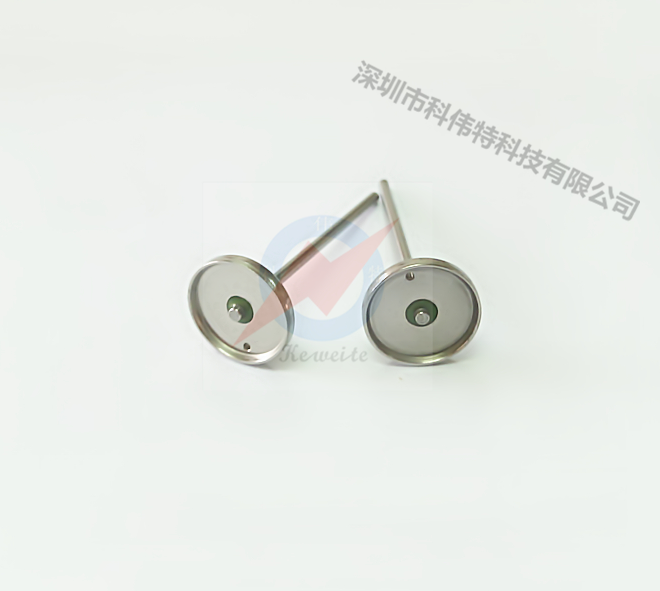

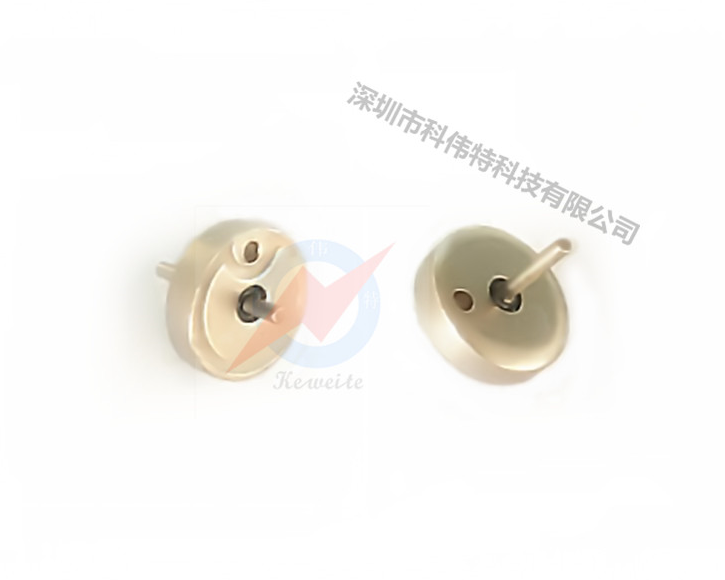

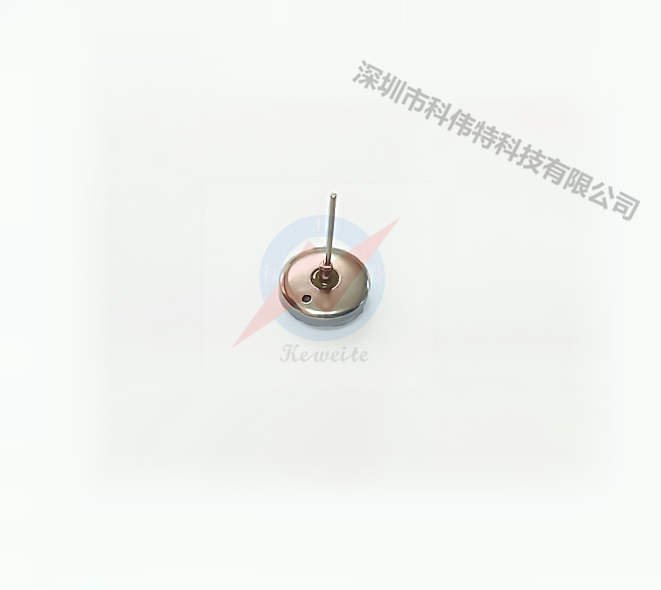

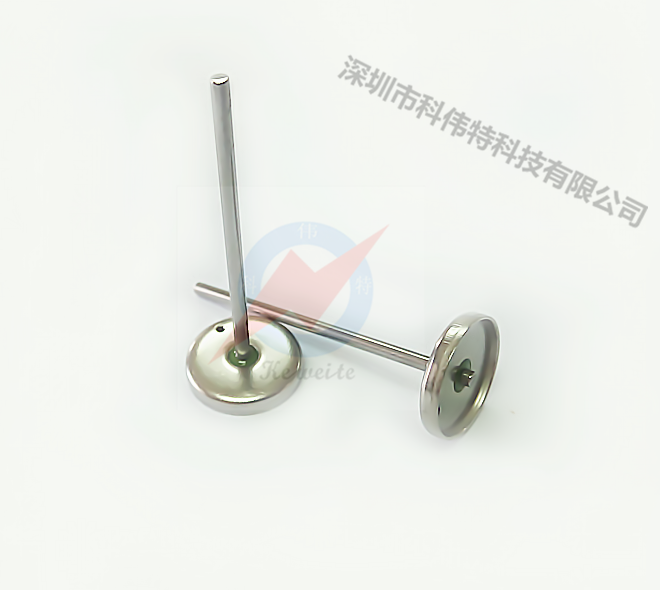

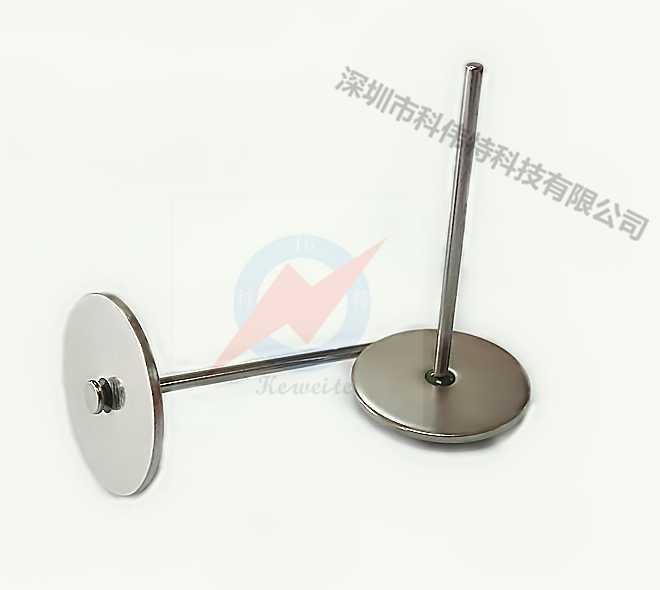

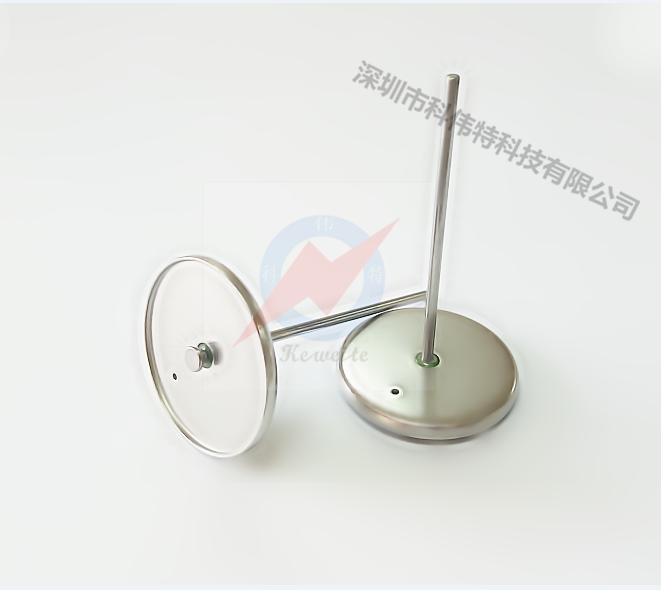

Battery cover group ER, CR series

Lithium battery cover glass encapsulation is one of KWT's main products, and the electric conductor stem is encapsulated by insulating glass and cover plate. After years of painstaking research and process optimization, the design of the product has made considerable progress. Its advantages are small size and light weight, which can prevent air leakage and liquid leakage, and avoid defects such as insufficient bearing capacity. It is widely used in many fields such as smart card meter, power supply, medical treatment, instrument, communication, military industry and so on.

KWTER/CR series cover sets often include commonly used electrical conductor core materials 4J28, 4J50, SUS430, and successfully developed a fully sealed glass-encapsulated lithium manganese battery cover set with electrical conductor core materials of molybdenum, tantalum, and aluminum. Due to the problem of internal short circuit caused by the precipitation of nickel-containing materials in the existing stainless steel materials 4J28 and 4J50 electrical conductor core posts, the service life of the battery generally does not exceed 5 years. However, after replacing the electrical conductor core post materials with molybdenum, tantalum, and aluminum, the There will be no metal substances and other conductive substances precipitated inside the battery, thereby reducing the self-discharge loss of the battery, extending the battery life to 10-15 years, and filling the domestic battery cover group that uses molybdenum, tantalum, and aluminum as the core column. Blank of glass package.

1. Product performance

(1) Insulation: DC500V, temperature 25±5℃, power supply resistance ≥10⁴MΩ;

(2) Withstand voltage: the voltage between the conductive core column and the metal cover is 1000V/50HZ, the leakage current does not exceed 0.5mA within 1 second, and no spark is generated;

(3) Airtight: The cover group is in the airtight detector, and the positive pressure is 2MPa without leakage, and the negative pressure is 1×10-11Pa.m3/s (negative pressure method) without leakage;

(4) Temperature: -40℃～130℃ cooling and heating cycle 5 times, the glass has no cracks and no leakage;

(5) Mechanical torque: 1.5NM of torque is applied to the core column, the conductive core column is not loose, and the glass surface has no cracks.

2. The specifications, dimensions and performance of the battery cover ER and CR series are implemented according to customer requirements

Material ER: (1), cover plate SUS304; (2), conductive core column 4J28, 4J50;

CR: (1), cover plate SUS304, carbon steel (cover plate nickel-plated); (2), conductive core column 4J28, stainless iron, aluminum 1060, molybdenum, tantalum.
