Sealed terminal series

The sealed terminal is an important component of the operating life of the compressor series, compression pump series, and large cooler series. Regardless of the size, it must have its unique applicability to refrigerants or other compressed materials in a sealed environment.KWTThe sealed connector, through the metal, glass, ceramic co-sealing sintering process engineering, the power is transmitted from the external power supply to the inside of the motor.

KWTSealed connectors, through continuous optimization of sintering process and material selection, produce high-quality sealed terminal connectors. Withstand voltage220~600V, Current a few amperes~Hundreds of amps, airtightMPa~60MPa,Mechanical pressure from several kilograms to hundreds of kilograms, insulation ≥10⁴MΩ 1000Vdc, withstand voltage 2800~4500V sec 0.5mA,High-performance products to meet market demand.

Product performance

(1) Insulation strength ≥10⁴Ω, 1000Vdc;

(2) Airtight pressure: 3.5MPa 30min without leakage;

(3) Withstand voltage test: 2200Vac Sec 0.5mA;

(4) Cold and hot cycle test: -40℃～110℃, five cycles, air tightness 3.5MPa without leakage;

(5) Mechanical shock resistance: 0.2kg, 550mm drop three times, air tightness 3.5MPa, no leakage;

(6) Thermal shock: 280℃, 35kg/cm²；

(7) Water pressure tightness: 500kg, 1min without water penetration;

(8) 3～5um nickel plating on the surface;

(9) Salt spray test: 48 hours, there should be no rust spots left on the nickel-plated surface.

The specifications, dimensions and performance of hermetic connectors are implemented according to customer requirements, and the current range (1ampere~600ampere)

Material (1) Matrix: carbon steel,SUS304, Copper, aluminum, tantalum, molybdenum;

(2) Electric conductor pole: stainless iron430,stainless steel446Kovar4J28, Copper core alloy, copper, aluminum, tantalum, molybdenum.

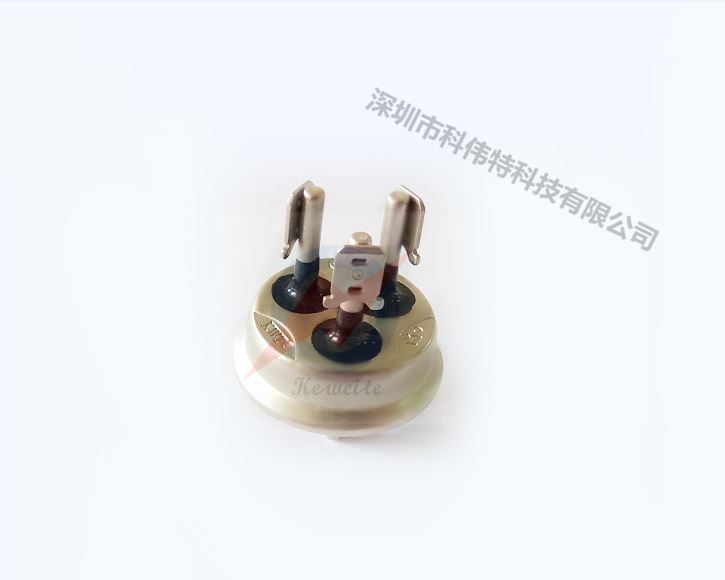

KWT-001

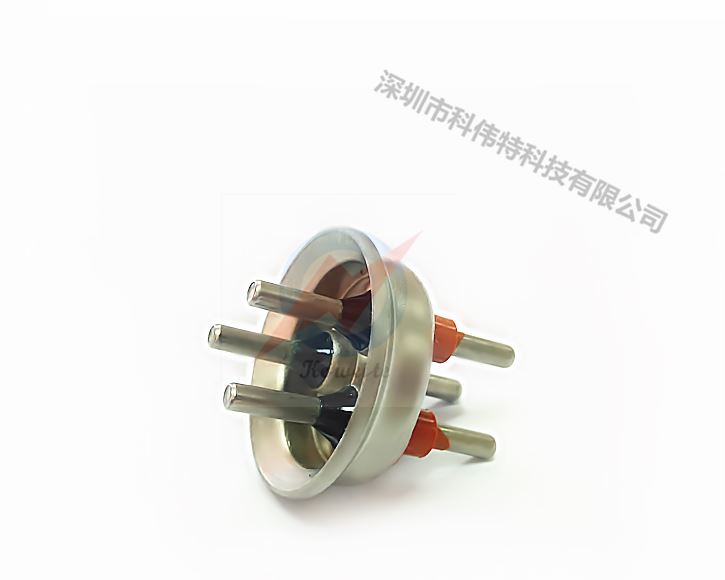

KWT-002

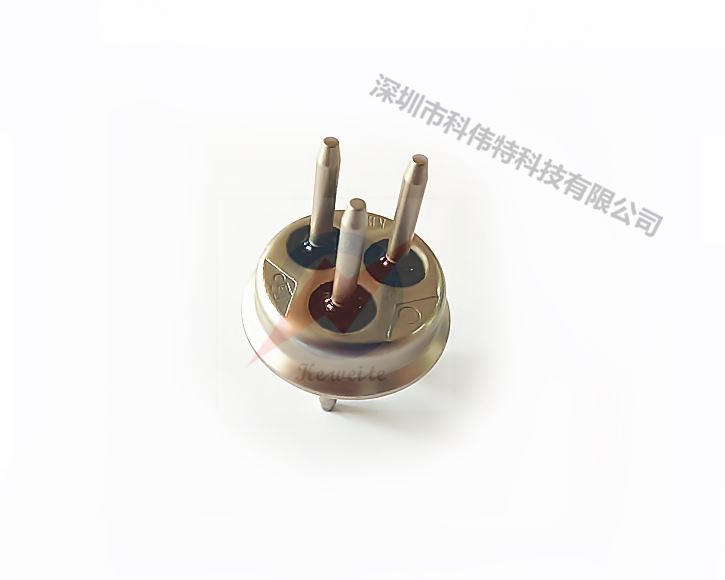

KWT-003

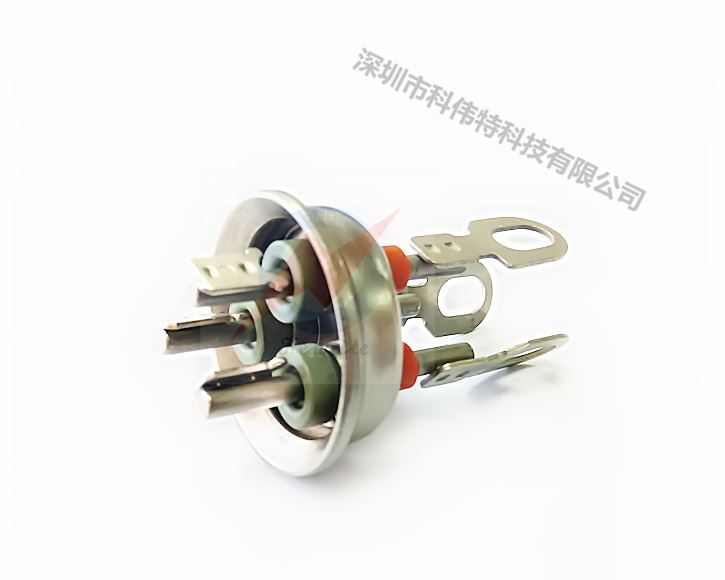

KWT-004

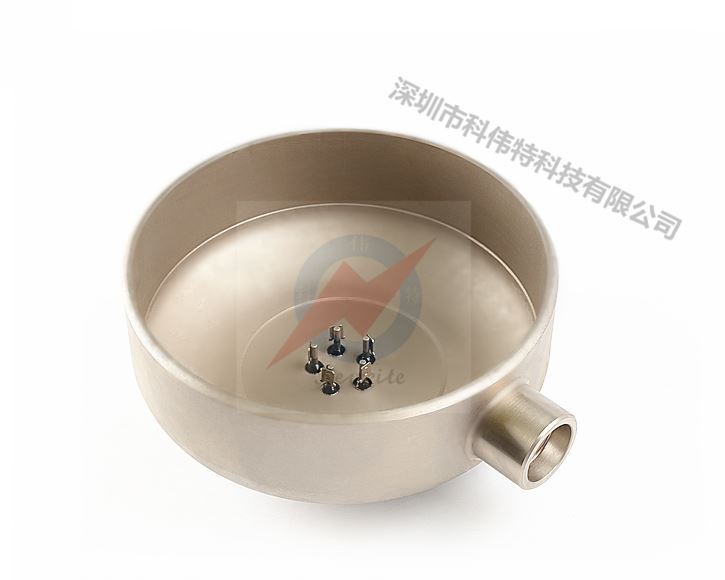

KWT-005

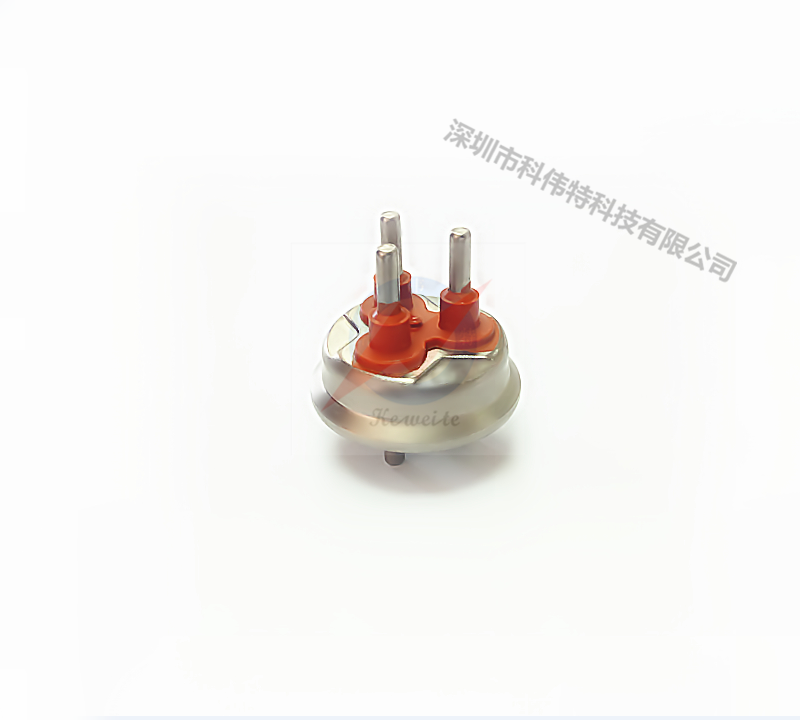

KWT-006

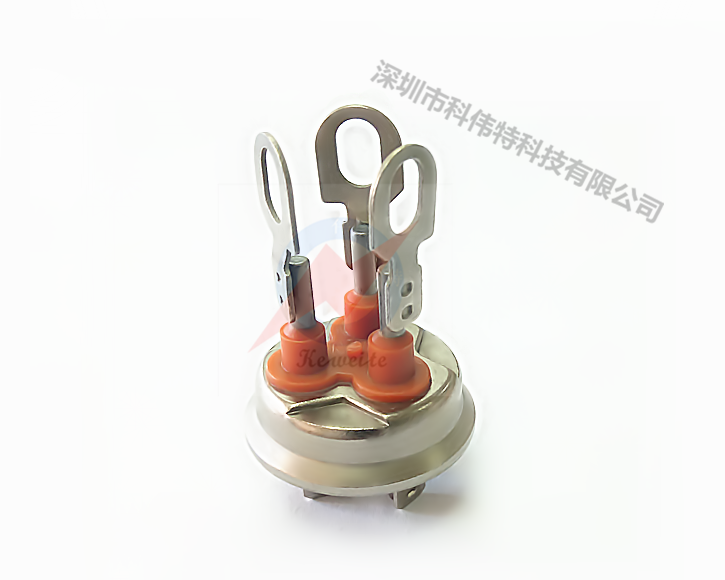

KWT-007

KWT-008

KWT-009

KWT-010

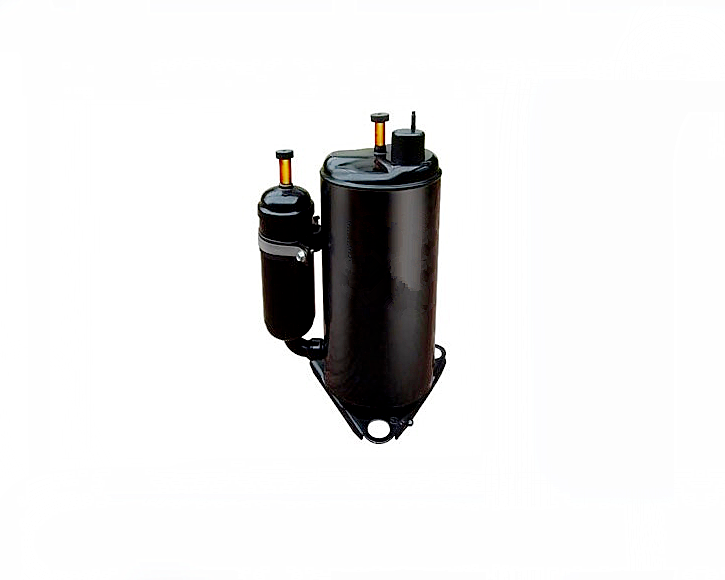

Home air conditioning compressor
